Wireless Video Refined Bolt transmits visually
lossless 4:2:2 video over the unlicensed 5GHz band
at less than 1 millisecond of delay. Bolt’s new
firmware ensures your system reaches its full
potential right out of the box. We’ve also improved
reconnect times so your wireless link is
restored instantly when you come back into range.

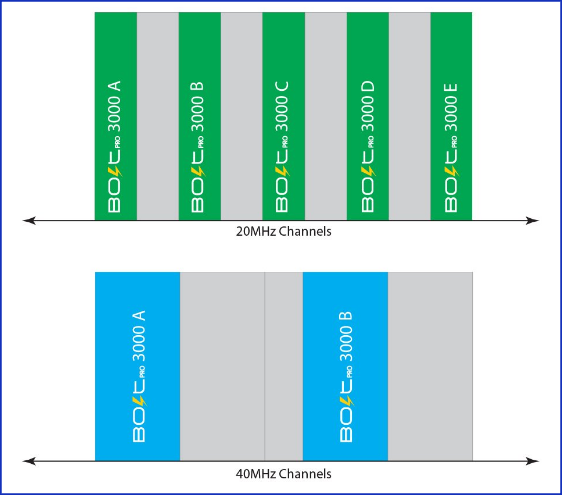

Transmission in Any Environment Operate more
than twice as many wireless systems at one
location or evade heavy interference. With
Bolt 3000, you can transmit over 20MHz
channels for a more robust signal in
challenging RF conditions.
channels allow you to operate more wireless
systems at once in a single location and
offer a more robust wireless link in
challenging RF conditions. However, audio
transmission, as well as interlaced, PSF,
and 1080p60/50 frame rates are not currently

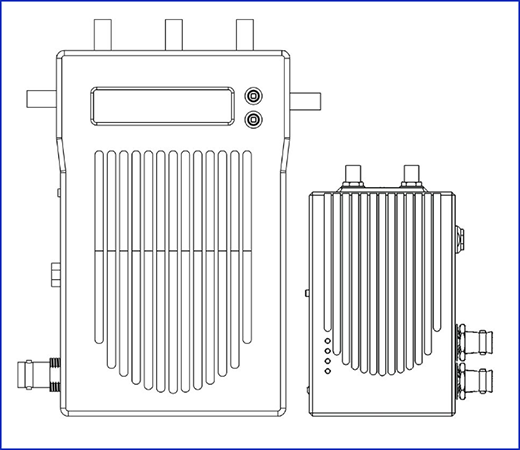

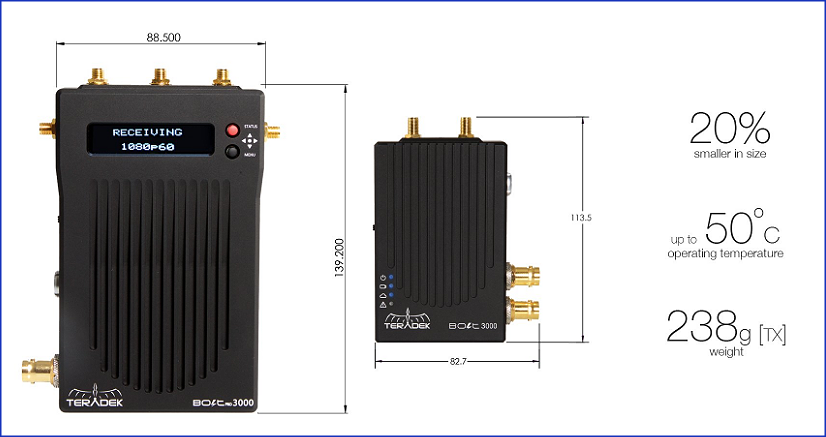

Smaller, Lighter, and Even
More Rugged The Bolt 1000 and 3000
transmitters are 20% smaller than previous systems
and lighter too. We’ve also improved their
resilience in high heat conditions so that they
operate flawlessly all the way up to 130F.

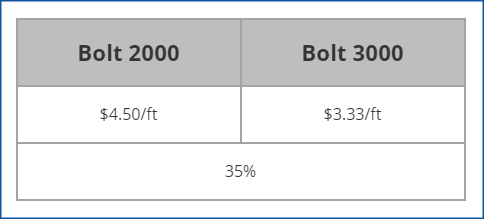

More Range for the Buck The new Bolt is not only
more capable in every way, but more affordable too.
Compared to older systems, the new Bolt 3000 and
1000 give you 35% more for your money.

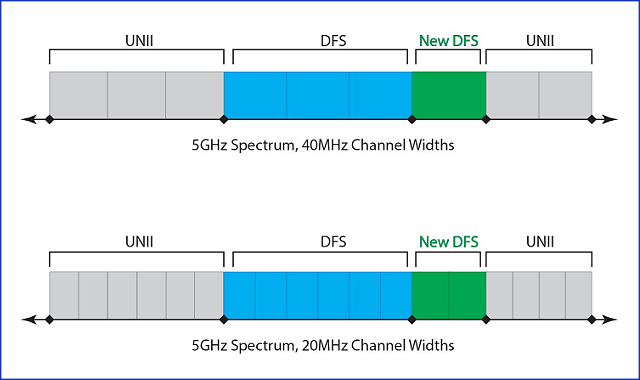

to Transmit Over Bolt also offers
manual frequency control so your crew can
carefully manage your wireless workflow
wherever you’re shooting. The Bolt 3000 can
operate on 2 new DFS channels, allowing
interference-free video transmission in more
environments than ever before.

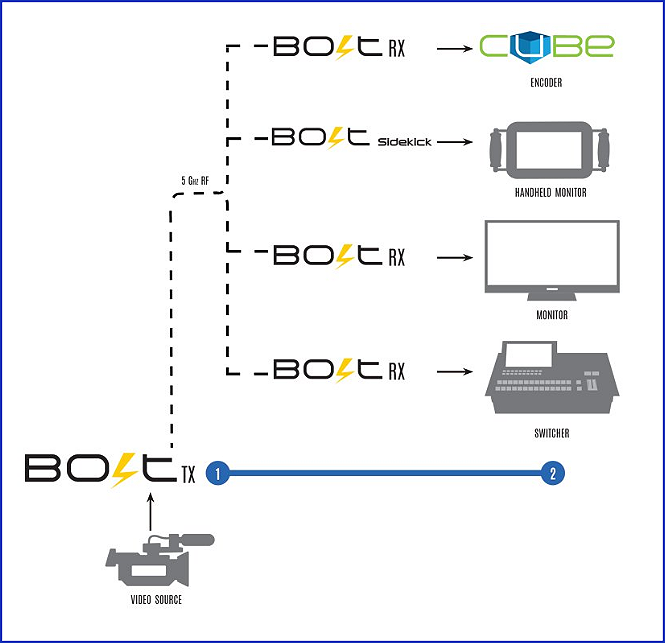

Multiple Receivers All Bolt models
are multicast capable up to 4 receivers of
the same range at the same time. This means
you can send your video feed to monitors,
switchers, recorders, and even Teradek Cubes
simultaneously with no loss in quality or

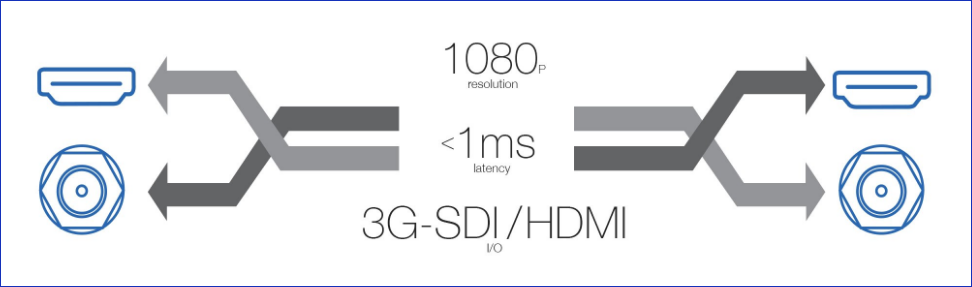

Built-in Cross Conversion Every Bolt model supports
real-time standards and cross conversion from TX to
RX, allowing you to automatically convert
resolution, frame rate, and inputs.outputs (HDMI /
3G-SDI) without any additional hardware.

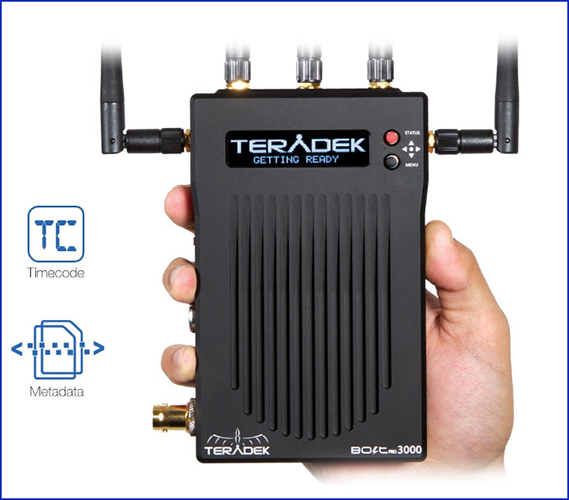

Time Code Support All 3G-SDI Bolt
models support metadata, timecode, and
start/stop flags from many camera
manufacturers, including RED, ARRI, Canon,
Sony, and Panasonic.
3D LUT Integration Apply the look you’re after directly to your wireless video feed using Bolt’s integrated 3D LUT technology. Upload your own LUTs using the free Bolt Manager software or select from a number of built-in presets using Bolt’s OSD.
Cut Through the
Interference The Panel Array Antenna is
your go-to solution for cutting through wireless
interference in crowded environments. When attached
to a Bolt 1000 or 3000, the antenna provides and
extremely robust directional signal that will ensure
your signal arrives uninterrupted.

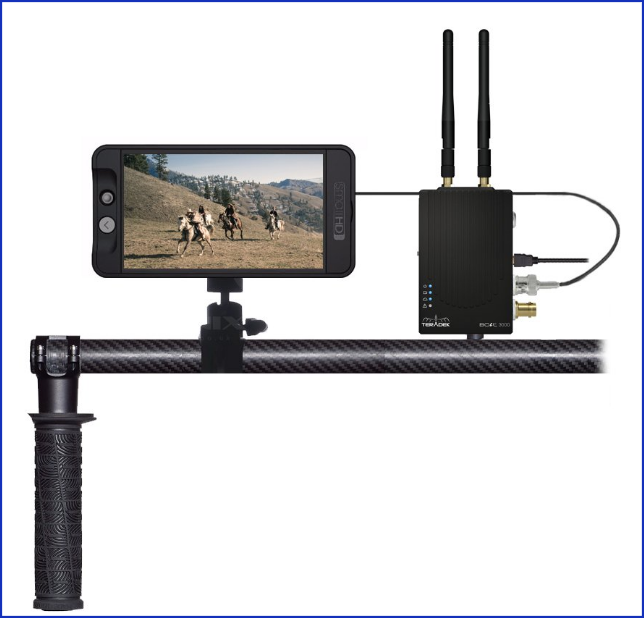

to SDI Converter
Perfect for use
with MoVI and other gimbals, Bolt’s TX
features a built-in HDMI to SDI converter,
allowing you to connect both your on-camera
monitor and video source via the same
Forget About Capture Cards
Bolt’s USB 3.0 GRAB Engine
allows you to ingest a Bolt feed directly into a
computer or your DIT cart without any added delay or
loss of quality.
Identity To better identify
which systems are paired on set, a removable
top plate on Bolt’s TX and RX can be swapped
out for a colorful anodized one.

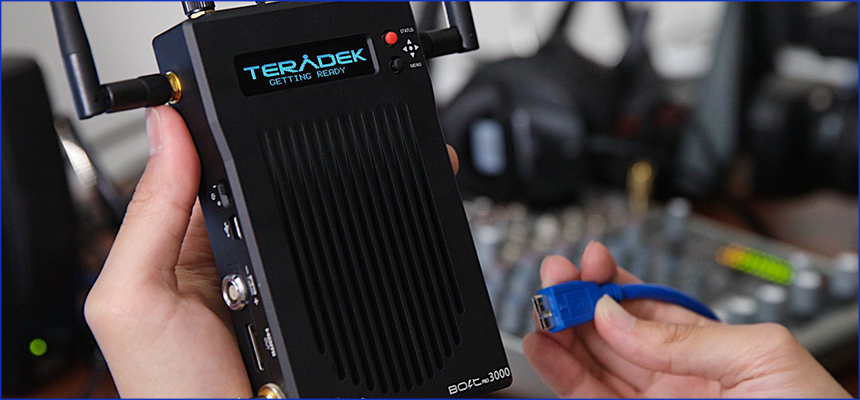

Built Like a
Tank Bolt is housed in
a hardened aluminum chassis designed to
withstand years of abuse in both extremely
hot and cold conditions. Both the TX and RX
feature 1⁄4”-20 holes for mounting to
cameras and monitors as well as 2-pin Lemo
connectors for power. Unique to Bolt 1000
and 3000, a built-in OLED on the RX allows
you to quickly configure the system as well
as apply 3D LUTs at the touch of a button.

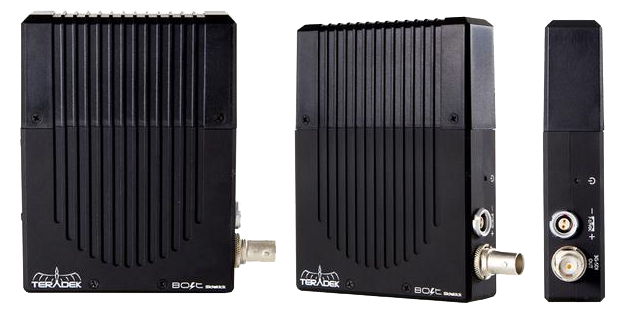

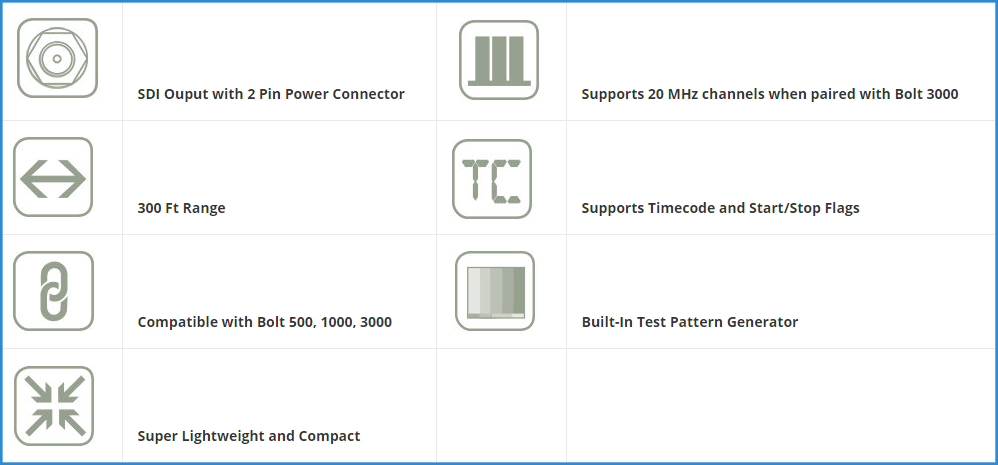

Bolt Sidekick is a
lightweight, short range companion receiver to all
Teradek Bolt Pro transmission systems. At only 9oz,
Bolt Sidekick is the ideal solution for 1st AC’s and
Director’s handheld monitors since it will work with
any existing Bolt Pro up to 300 feet from the
transmitter without affecting its performance.
Available in HDMI or 3G-SDI flavors, the Sidekick
receiver is the perfect companion for existing
