NewTek - 3Play 440
Live Video Production - Live Video Streaming
Get the tools you need from Videolink! - A NewTek Elite Partner

3Play 440

Give Us 90 Seconds! 3Play Demo Top Features Interface System Diagram Tech Specs

NewTek 3Play Explained
Editing multi-camera footage into a final, high quality program takes time.
In fact, for many video pros, it takes far too much time.


Give us just 90 seconds and let us show you how you could edit your multi-camera productions up to 30x faster.
In fact, we’ll show you how you can record everything, digitize live, and never worry about syncing anything ever again.

Doesn’t that sound like 90 seconds well spent?


NewTek 3 Play 440

The same set of sports production tools as 3Play 4800 - but sized and priced for smaller programs - makes 3Play 440 a complete, integrated sports production system for mobile and regional producers who deliver small to mid-sized live sports.

With more real-time capabilities than any multi-camera replay server all packed into a single turnkey solution, 3Play 440 raises the ceiling for visual quality, format flexibility, and revenue opportunities for organizations with more limited budgets - even in standalone environments where a traditional production switcher isn’t available.

3Play 440 allows regional and mobile broadcasters, colleges and conferences, and mid-size venues to experience greater creative freedom, integrate smoothly into any location, and produce stunning slow motion, instant replay, in-game highlights and social media sports at any speed on any screen - serving officials, fans, and sponsors alike.

> Perform virtually any sports video production task - home or away - even with a reduced crew, with extensive built-in capabilities
>
Extensive workflow customization, with flexible 4-in, 2 out HD and SD component, composite, and SDI I/O for   advanced operators and mobile units serving regional audiences - and beyond
> Reduce equipment footprint and save on weight, power, setup time, and cabling
> Save up to 75% compared with many other replay systems
> Make a major impression on viewers with visuals designed for maximum audience engagement
>
Produce mobile sports your way, with the most flexible, customizable, and workflow-adaptable set-up, operation and programming potential available
> Click here to see the top features for 3Play 440

Click Here For 3Play Model Comparison Guide




$24,995 US - Contact Us -1-800-567-8481


3Play Demo

Top Features NewTek 3Play 440

Integrated Mobile Sports Production
Produce sports programs in a single solution with a small footprint and a low-impact sticker price. Doing the work of multiple systems with its 4-camera ISO recording, 140 hours of HD storage and playback, pristine slow motion, multi-camera replay switching, media publishing, highlights creation, camera color correction and more, 3Play 440's single 2U rack mount solution lets moderate and smaller sports productions gear up vans and booths without piling up the spending on racks of equipment.

Self-Contained Live Shows
Perform essential end-to-end game production even in minimalist in-house setups, and feed a spectacular fan experience to the board. Even without a dedicated switcher, the smallest crew can use 3Play 440 to switch the game for up to 4 cameras, in both live and replay segments; add internal and external sources to play back clips, effects, overlays and transitions; include titles and scoreboard feeds from across the field or over the network; and provide the highlights to social media networks. All in real time.

Multi-angle Switching
Capturing more angles makes any size game look larger and adds another dimension of drama. They can all be recorded automatically with 3Play 440 to capture, protect, repurpose, and create even more programming from your assets. Available immediately for rapid-turnaround handoff to postproduction in high-quality QuickTime in your native HD resolution.

ISO Camera Capture
Go beyond the big screen and the bleachers in ways that EVS systems and others won’t allow. Instantly distribute content for second and third screen social engagement so viewers can connect with friends, followers, and fellow fans – and chat about your game coverage – in real time. One-touch publishing directly to Facebook, Twitter, and YouTube accounts lets you take pre-game, live or postgame content viral – and become the talk of this generation’s water cooler.

Built-in Color Matching
Outdoor games are part of a mobile crew’s business. Budget for a dedicated color correction station is not. 3Play 440's advanced proc amp toolbox automates color calibration across all sources, and provides not only consistency but also algorithmically calculated precision to make every lighting change or shift in the weather practically invisible to anyone watching on screen.

Automation and Control
Production sophistication can grow more dazzling, without the growing pains of added crew and added complication. One operator can streamline processes, with one-click macros for complicated or frequently performed actions and sequences. More operators - whether new to the crew, or advanced at their specialty - can breakout control of certain tasks to button-push MIDI devices. Trucks and venues with compatible switchers can use Advanced Media Protocol (AMP) to control clip and playlist actions remotely.

Play Review
If referees need visual verification (or the league rules require it), and restless fans need entertainment during the pause, then 3Play 440 is the one to provide both. Game-clock overlay shows the synchronized sources of camera and timer. Simultaneous playback of multiple angles give a visual comparison side-by-side or picture-in-picture, so you can draw out the tension of the match while putting to rest any questions.

Show-Stopping Motion Control
Smaller productions still need maximum audience engagement, and for sports fans, there’s nothing more riveting than watching a dramatic play in crisp, clear slow motion. 3Play 440 uses your existing, standard HD and SD cameras, feeds the into its breakthrough super-resolution algorithm, and adds T-Bar and jog-wheel control of playback from nearly a standstill to double speed, backward and forward.

Social Sports
Gain more exposure while growing your base to online communities. One-touch publishing directly to social media networks like Facebook, Twitter, and YouTube gives your own branded content - highlight clips, stills of all replay angles - the potential to go viral and dominate the game-day conversation online.

Intuitive Clip Access
With up to four angles of every play captured at all times, your replay operator has lots of choices to make on the fly. Cut up to 30% of extraneous keystrokes and save time in the crunch, with 3Play 440’s FastClip context-aware text field. Whether you’re renaming, searching for, or moving a clip, FastClip uses what you’re typing to automatically determine what to do - like having your own clip assistant.

Expand Your Brand
Mid-tier productions can’t afford to lose out on the exposure, promotional, and commercial opportunities that better programs can earn - and smaller producers feel the same pain. But strained budgets can’t always add more graphic workstations. 3Play 440 builds in high-impact design elements for your packages, highlights, and sponsor segments - like real-time cloth transitions, 3D video warping, and image transformations with alpha channel and embedded audio - and includes the software to make them yourself.

Visuals that Impress
If four-camera replay will take your games to the next level, overlays will multiply the visual possibilities with whatever your creativity can supply, but without the multiple creative workstations normally required. Any video, graphic, animation, effect, replay, or camera feed stored in the system - or any live source brought in over the network, like telestration, titles, or motion graphics - can be keyed over in full motion, and positioned, scaled, and cropped to create the highest-impact compositions and get more sponsor attention and professional exposure for your sport.

Live-Edit Highlights
In-game highlights editing takes the hottest plays and gets them ready for fans’ appetites while they’re still fresh. With audio, speed control, custom 3D effects and transitions. Yes, you can build them with your own brand elements, yourself - and a music bed for even more of a post-production touch. Your athletes, fans, and big plays all get the star treatment they deserve long before the final buzzer rings.

Integrate Anywhere
Whether moving from van to venue or sideline to booth, 3Play 440 adapts to any space. Link into scoreboard feeds, MAM systems, and other devices. Routers can expand camera count beyond four for more ambitious events, while our SDK opens up workflows with more external applications and fewer workarounds. In connected environments, NewTek TriCaster detects 3Play 440, performs connection-aware configurations automatically, shares playlist duties, executes shared batches of commands, and automates playback sequences - making an exponentially bigger show possible, even in the smallest spaces.

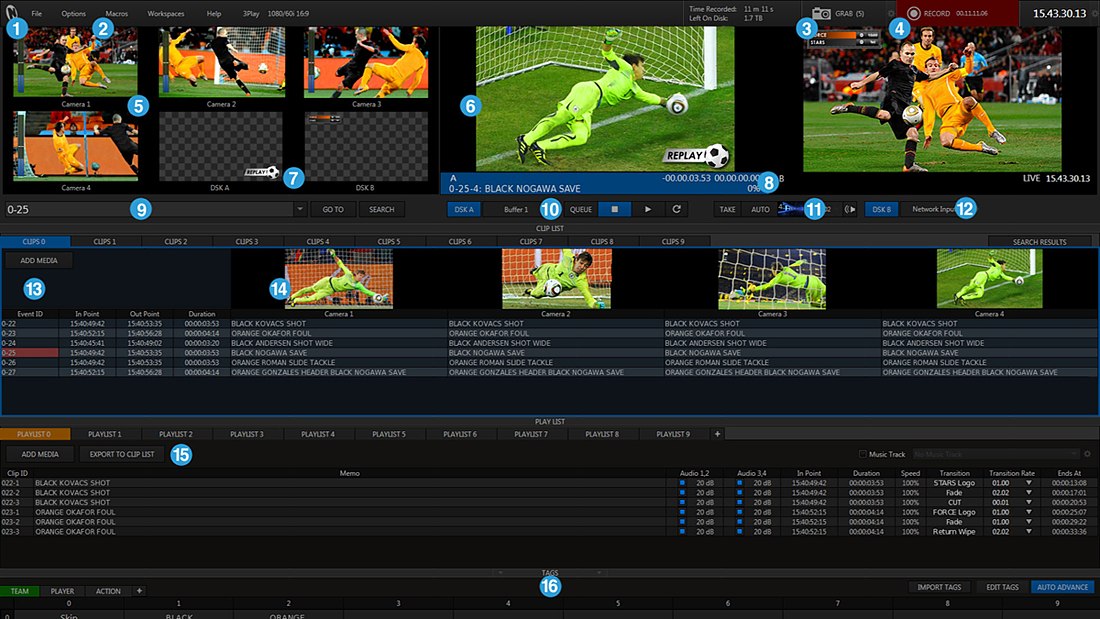

3Play 440 / Interface

NewTek 3Play 440


USER INTERFACE
Connect up to four live video sources (or more, using a compatible external video router), audio sources, and the included hardware control surface for multi-channel recording, multi-speed playback, media publishing and asset management.

MACROS
Make frequently used commands and sequences automatic. Record a series of operations as a macro event, make adjustments as needed with the built-in Macro Editor, then trigger with a single click, keystroke or button press.

GRAB
Capture freeze frames of the action from every angle simultaneously, then post your HD images to social media accounts and storage targets, using the integrated media publishing system.

RECORDING
Record up to four channels of video simultaneously. Files are recorded at native resolution to a high-quality QuickTime format for media publishing, post-production or archive purposes.

LIVE DESKTOP MONITORS
View the action from every angle with full field rate preview displays and monitor audio levels with VU meter overlays. Integrated multi-view monitoring allows you to select from additional layouts and send all on-screen monitors to a second display to enlarge your workspace.

OUTPUT MONITORS
Monitor the live video output of the two fully independent playout channels and mix them, using standard transitions or custom animations.

OVERLAYS
Layer live sources, titles, graphics and animations over playout channels; layer one playback angle over another for simultaneous picture-in-picture playback; or capture the game clock and layer over playback for official review. Each DSK overlay supports independent positioning, scaling and cropping.

CHANNEL INFO
View key playback data for A and B output channels, including time code, clip duration, and playback speeds.

FASTCLIP WINDOW
Input and edit metadata, search, filter, and categorize clips, and more, with the intuitive 3Play 440 asset management system. FastClip supports input from both the control surface and keyboard for flexible data entry and navigation.

BUFFERS
Access pre-produced video, motion graphics, titles, bugs and animated effects for use in overlays, with watch folder functionality to edit and update in real time over the network.

TRANSITIONS
Transition between A and B playout channels in real time using crossfades, wipes and dissolves – or use full-color animation store transitions with embedded audio and TransWarp effects. The integrated Animation Store Creator application lets you build your own custom animated transitions and warping video effects.

NETWORK INPUTS
Share computer screens or displays from wireless Apple AirPlay devices like iPad, iPhone, or iPod, connected to the same local network. 3Play 440 also accepts titles, graphics and scoreboard data from NewTek LIveText and compatible NewTek developer solutions for overlay applications.

CLIPS LIST
Manage all marked events and clips for playback. The multi-tab structure, customizable tab names, and per-clip metadata entry provide for efficient asset management and organization.

CLIP MONITORS
Preview all clip angles from a recorded event simultaneously, while the action continues in your live desktop monitors. Clip Monitors can be embedded in the user interface, multi-view display or both.

PLAY LIST
Create highlight reels with per-clip management of audio and playback. Build and organize multiple clip sequences, using the multi-tab structure, then customize with animation store transitions and a background music track.

TAGS
Create and manage your own code system for instant metadata entry. Assign Tags to teams, play types, players, and more – then build full descriptions from keystrokes or simple control surface commands.


3Play 440 /Tech Specs

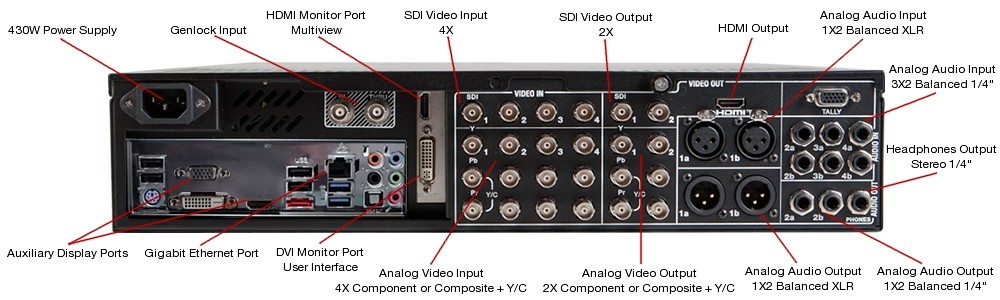

3Play 440 Connection Diagram

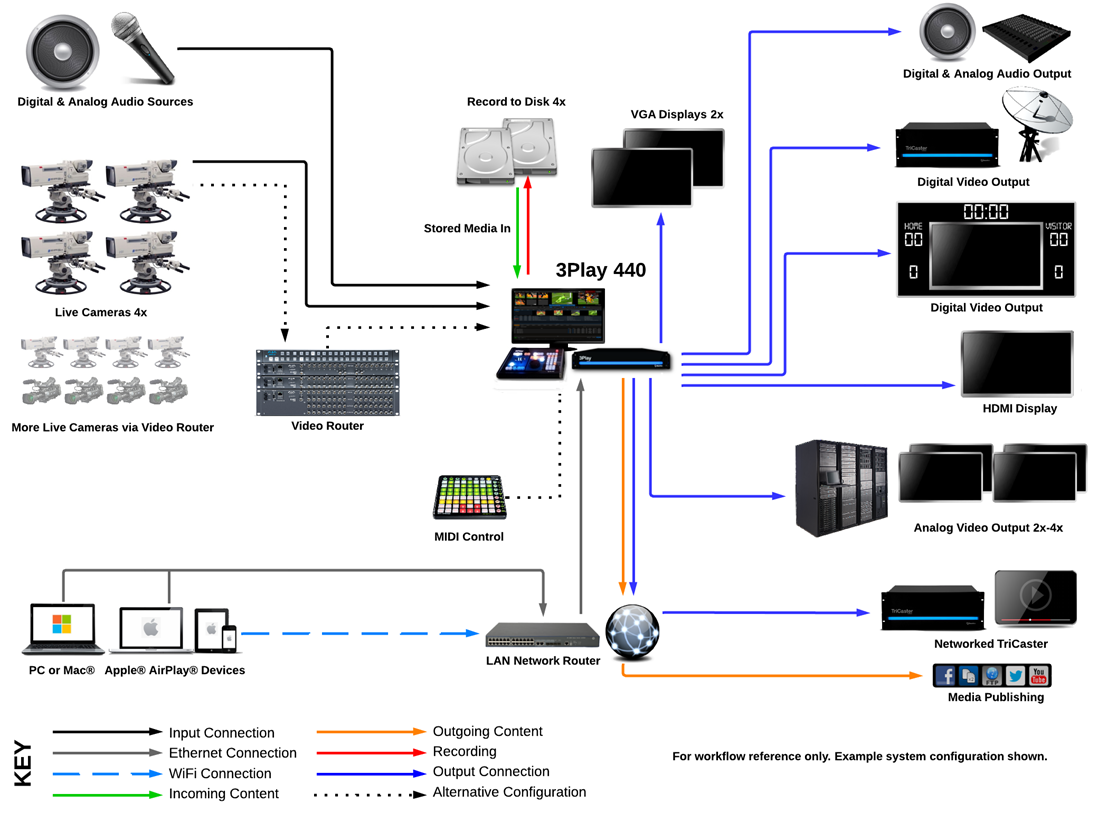

3Play 440 / Schematics Diagram
3Play 440









$24,995 US - Contact Us -1-800-567-8481
