SKAARHOJ Tally System at Videolink
Use the Tally Box system to take full control of your live video production.
It's a small and simple yet very powerful tool for optimizing the flow of a production.
Get the tools you need from Videolink!


SKAARHOJ The SKAARHOJ Tally System is a great add-on for your live video-production. The tally light have two LEDs; one facing the camera operator and the big one facing the presenter. It's possible to switch the main LED on/off via a switch on the tally light and the operator LED have both program and preview tally (can be dimmed). The Tally Box allows up to 8 tally lights, connecting either direct via the box, or by daisy chain running from tally light to tally light.





SKAARHOJ Tally system

The Tally Lights enclosures are made of solid aluminum so they can take a beating for a life on the road.

Simple but effective.
Mount these small tally lights and improve your live video workflow.

Heads up - you're next!
The tally light have both program and preview tally.

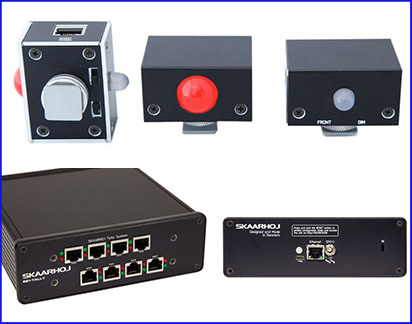

Everything you need for a Tally system.
A SKAARHOJ Tally box and a couple of Tally lights - then you're good to go.

Features

- Program + preview tally
- No need for Blackmagic Design GPI & Tally Interface
- Star connection

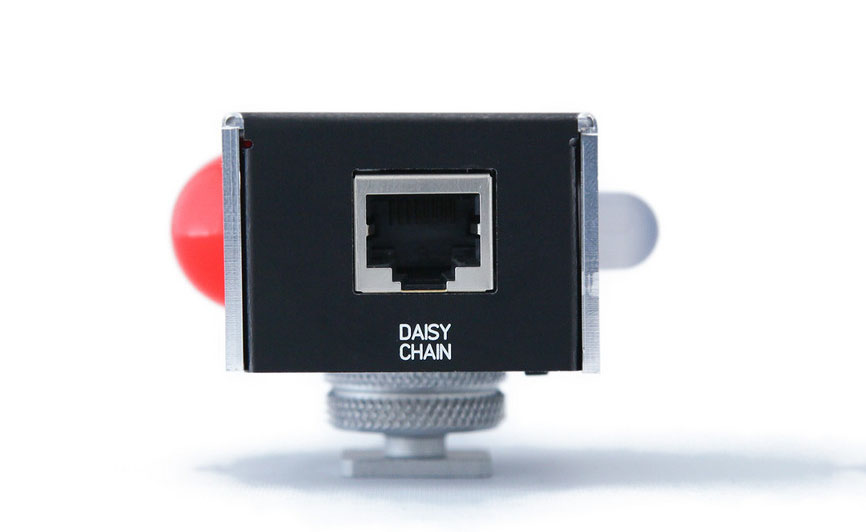

- Daisy chain connection
- Kensington lock
- Configuration of input assignments and IP addresses via web interface
- Solid enclosure with black or blue anodized aluminum plates
- Compatible with all BMDs video switchers
- Tested with 200m cable
- 100% Creative Commons/Open Source design (CC-by-sa or GNU/GPL)

Click on thumbnails for larger pictures
skaarhoj
skaarhoj
skaarhoj
skaarhoj

Click on thumbnails for larger pictures

Configuration

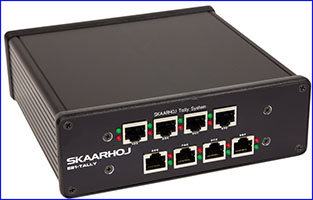

Tally Box
The SKAARHOJ Tally Box supports a total of 8 tally lights and offers both program + preview tally. You connect it to your ATEM network and the lights to the 8 outputs. You can either connect them one by one or in a daisy chain configuration by a maximum of 3 in a row.

The order of the daisy chain is determined by which output you choose (numbers listed on the box). In the default-shipping configuration it will have the following assignment.

- Output 1 = Tally ID 1
- Output 2 = Tally ID 2
- Output 3 = Tally ID 3
- Etc.

It's possible to connect single lights and daisy chain simultaneous, e.g. Output 1 = Tally 1, Output 2 = Tally 2 and Output 3 = Tally 3+4 in daisy chain (since it's output 3-4-1)

If preferable you can alter the assignments of Output/Tally ID. E.g.

- Output 1 = Tally 5
- Output 2 = Tally 6
- Output 3 = Tally 7
- Output 4 = Tally 8
In a daisy chain configuration this would result in

- Output 1-2-3 = Tally 5-6-7
- Output 2-3-4 = Tally 6-7-8
- Output 3-4-1 = Tally 7-8-5
- Etc.

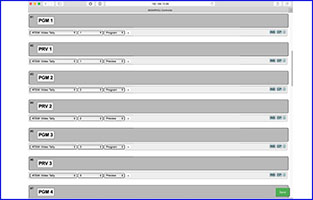

Web Interface
skaarhoj

Setting tally input assignments
(preview + program)
skaarhoj

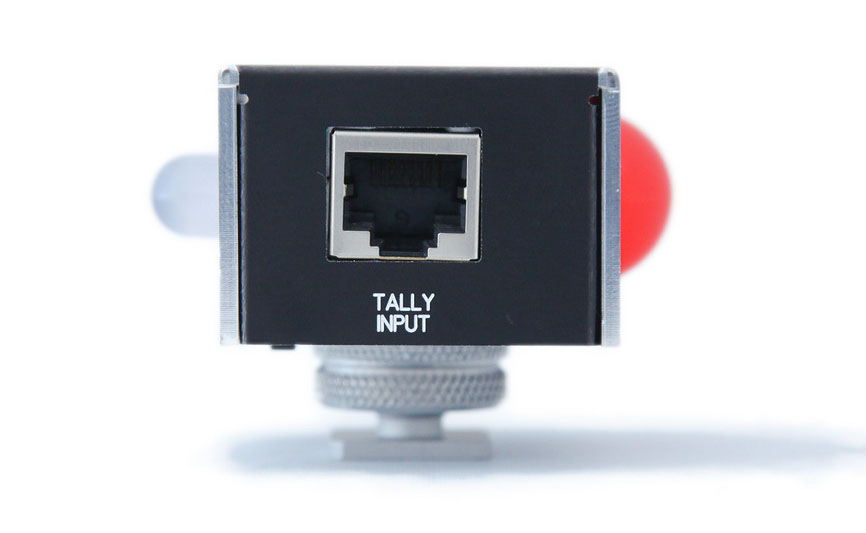

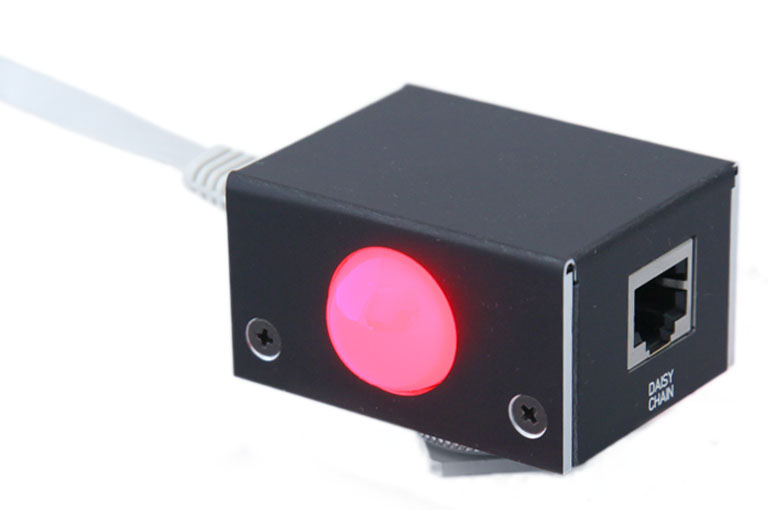

Tally Light
skaarhoj

Tally Light

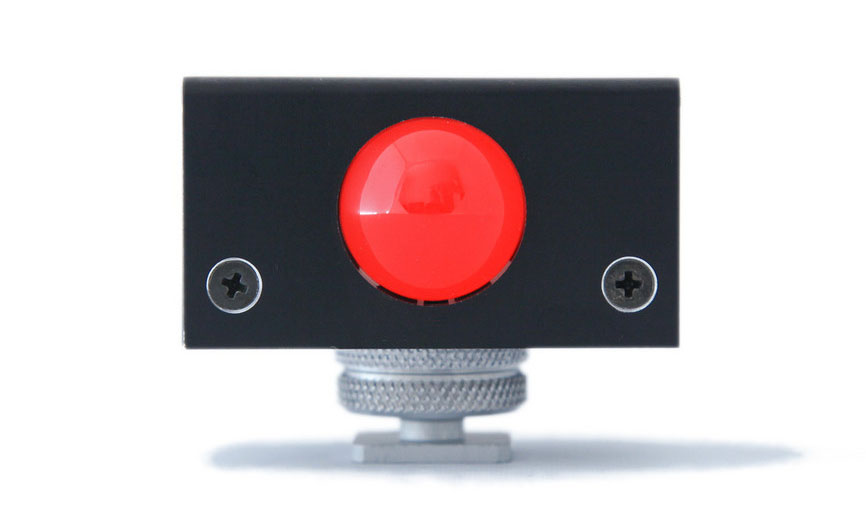

The Tally Light is mounted by the hot shoe and the main LED can be turned on/off by a small switch.

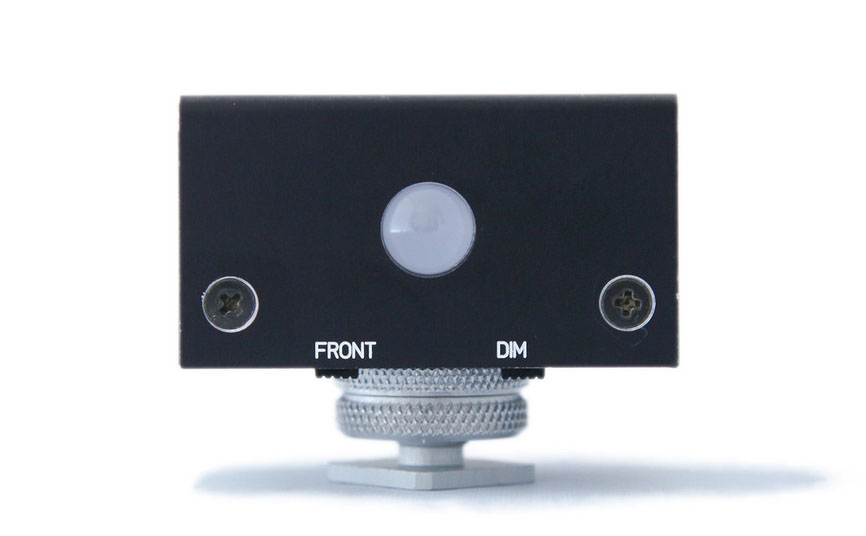

The operator LED lights green for preview tally, red for program tally and can be dimmed by a switch as well.

Buy a fully assembled Tally system ready to work out of the box.

What you get is:


- Fully Assembled Tally Box + Tally Lights
- UniSketch Web Interface
- 12V Power Supply
- Networking cable
- USB programming cable
- Manuals and Software: See skaarhoj.com/support/manual

Designs and Options are:


Tally Box (8 channels): $899.00 US
Tally Light: $349.00 US

Contact Us -1-800-567-8481


Package Deals:


- Tally Box (8ch) + 2 Tally Lights: $1.449.00 US
- Tally Box (8ch) + 3 Tally Lights: $1.749.00 US
- Tally Box (8ch) + 4 Tally Lights: $1.999.00 US
- Tally Box (8ch) + 5 Tally Lights: $2.259.00 US
- Tally Box (8ch) + 6 Tally Lights: $2.509.00 US

Contact Us -1-800-567-8481


For systems with 7 Tally lights or more, contact us to get a quote.
