Video Broadcast Systems / Live Streaming Solutions

Videolink Canada - NewTek Elite Partner Videolink Canada - Teradek Videolink Canada - Hollyland



YUAN I/O Capture Cards
Focusing on Wireless Data
Get the tools you need from Videolink!

Yuan Capture Cards YUAN provides PCIe/ miniPCIe/ M.2 video capture card series, USB2.0/3.0 capture box/dongle series, video converter boxes series and streaming encoder boxes series to meet different market’s needs. All video capture products with different form factors are all supported by one driver and same SDK which follows Windows Directshow or Linux v4l2 standard.
Buy 2 - I/O Capture Cards and receive 10% off
Buy 3 - receive 15% off
BEST DEAL Buy 4 - receive 20% off





YUAN Capture Cards
SC560N4 YUAN 4 input 4K HDMI


Features:
- 4 × HDMI Embedded audio
- Stereo / 16-bit / 32000 ~ 48000Hz
- H.264 (Software Compression)
- PCIe x4 (Gen2)
- Support API : DirectShow, V4L2, FFmpeg, gstreamer
Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi




$1199 US

Order Online or Contact Us -1-800-567-8481





SC542N4 HDMI YUAN 4 input HD

Features:
-  Software Compression, Real-Time Mode
- 4 × HDMI
- H.264 (Software Compression)
- 4 × HDMI Embedded audio
 -Stereo / 16-bit / 32000 ~ 48000Hz
- VC++ / C# / .NET / VB / V4L2





$899 US

Order Online or Contact Us -1-800-567-8481

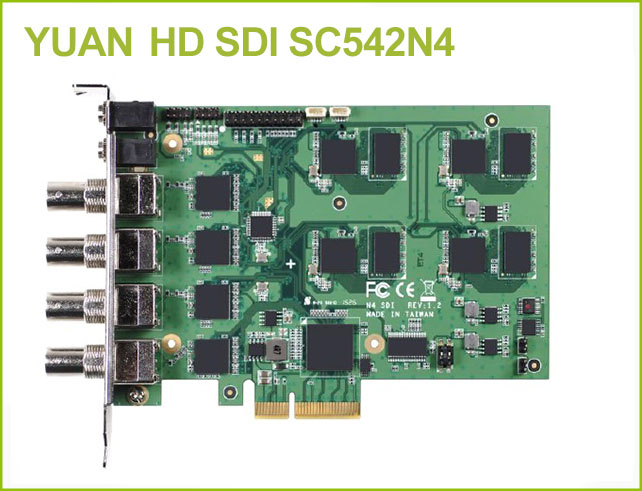

SC542N4 SDI YUAN 4 input HD

Features:
- Software Compression, Real-Time Mode
- PCIe x4 (Gen2)
- 4 × SDI
- H.264 (Software Compression)
- Stereo / 16-bit / 48000Hz
- VC++ / C# / .NET / VB / V4L2




$899 US

Order Online or Contact Us -1-800-567-8481

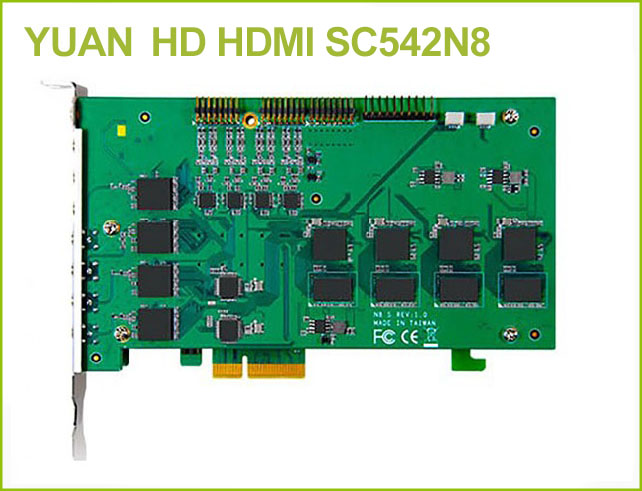

SC542N8 HDMI Yuan 8 input HD

Features:
- Software Compression, Real-Time Mode
- PCIe x4 (Gen2)
- 8 × HDMI
- H.264 (Software Compression)
- 8 × HDMI Embedded audio
- Stereo / 16-bit / 32000 ~ 48000Hz
- VC++ / C# / .NET / VB / V4L2





$1399 US

Order Online or Contact Us -1-800-567-8481





SC542N8 SDI YUAN 8 input HD

Features:
- Software Compression, Real-Time Mode
- PCIe x4 (Gen2)
- 8 × SDI
- H.264 (Software Compression)
- 8 × SDI Embedded audio
- Stereo / 16-bit / 32000 ~ 48000Hz
- VC++ / C# / .NET / VB / V4L2





$1399 US

Order Onine or Contact Us -1-800-567-8481

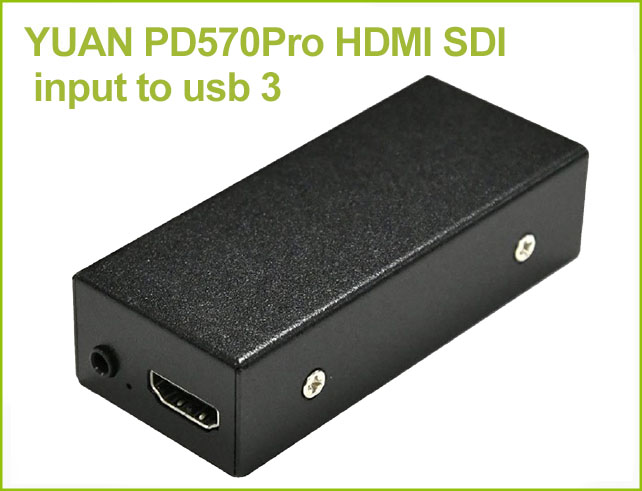

PD570Pro HDMI YUAN SDI to USB 3

Features:
- Software Compression, Real-Time Mode
- USB3.0 (SuperSpeed) UVC
- YUY2 (USB3.0)
- 1 × HDMI
- YUY2
- HDMI Embedded Audio 3.5mm Analog Stereo Audio
- Stereo / 16-bit / 48000Hz





$249 US

Order Online or Contact Us -1-800-567-8481

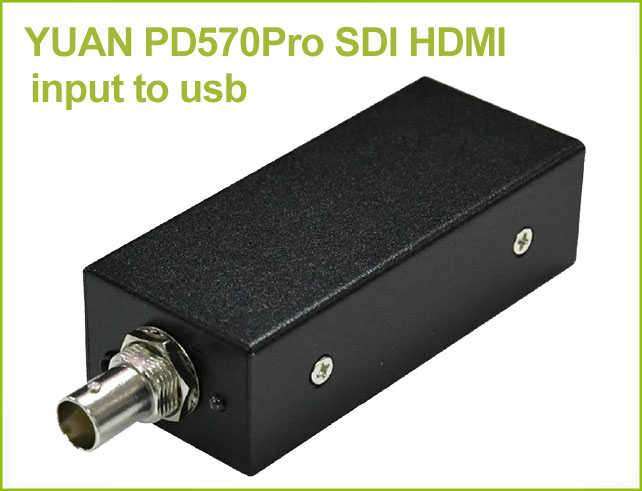

PD570Pro SDI YUAN HDMI to USB 3

Features:
- Software Compression, Real-Time Mode
- USB3.0 (SuperSpeed) UVC
- YUY2 (USB3.0)
- 1 × SDI
- YUY2
- SDI Embedded Audio 3.5mm Analog Stereo Audio
- Stereo / 16-bit / 48000Hz





$249 US

Order Online or Contact Us -1-800-567-8481
