Hardware Video |
1 x HD-SDI with embedded audio |
|
Hardware Video Output |
1 x HD-SDI with embedded audio |
|
Hardware Audio Input |
1 x embedded SDI audio
2 x Balanced XLR (Line) |
|
Hardware Audio Output |
1 x embedded SDI audio
2 x Balanced XLR (Line) |
|
IP Networking |
Integrated NewTek Network Device
Interface (NDI™) technology enabling transmission of A/V
input and output signals over IP between TalkShow and
other supported systems, including TriCaster®,
3Play™, and a range of third-party solutions |
|
Dante Audio Networking |
Integrated Dante audio support, enabling TalkShow to
interface with other audio devices utilizing the Dante
networking protocol from Audinate |
|
Call Recording |
Supports full-bandwidth recording of call video and audio
(optionally including return audio on separate channels)
to external USB 3.0 or SAN storage |
|
Video Effect Controls |
Fully configurable color correction settings for incoming
and outgoing video signals, including white balance, proc
amp controls and auto color |
|
Audio Effect Controls |
Fully configurable settings for incoming and outgoing
audio signals, including gain control, seven-band
equalizer and compressor/limiter |
|
Talk Back |
Supports direct, off-air communication between operator
and remote caller via headset (optionally configurable for
control via external GPI trigger) |
|
Call Management |
- Direct mouse and keyboard USB
interface required
- Supports multi-channel Skype
TX call management over local network via Skype TX
Controller application in multi-unit installation
|
Local Monitoring
|
- DVI and HDMI monitor ports for
connecting external user interface display (Minimum
monitor resolution 1600x1050)
- Stereo 1/4" phone jack for
local audio monitoring
- Front-mounted RGB video
preview display with tally support
- Full-motion input and output
video previews within user interface
- Audio VU metering configurable
for dBFS, dBU and dBVU
|
Output Video Formats
|
Configurable call video output resolution and frame
rate, with support for NTSC and PAL formats
- 1080i - 25, 29.97, 30
- 1080p - 23.98, 24
- 720p - 50, 59.94, 60
- 1080i (4:3 anamorphic) - 25,
29.97, 30
- 720p (4:3 anamorphic) - 50,
59.94, 60
- 576i (16:9 or 4:3) - 25
- 480i (16:9 or 4:3) - 29.97
|
Return Video Formats
|
Configurable return video input resolution and frame
rate, with support for NTSC and PAL formats (available
selections vary depending on output video format
selected)
- 1080i - 29.97, 25
- 1080p - 30, 30 PsF, 24, 24
(Telecine), 25, 25 PsF
- 720p - 30, 25, 24
- 576i (16:9 or 4:3) - 25
- 480i (16:9 or 4:3) - 29.97
|
|
Watermark |
Integrated support for displaying Skype logo watermark on
output |
|
Tally |
- Supports hardware tally via
HD15 GPI connector or network tally via NDI
- Optionally display
customizable tally overlay on return signal
|
|
GPI |
HD15 GPI connector |
|
Reference |
- Genlock input supporting SD
(Bi-level) or HD (Tri-level) reference signals
- +4dBU audio reference level
|
|
Software |
Microsoft Windows Embedded 8.1, Skype TX control software,
and TalkShow control software |
|
CPU |
4th Generation i7 Quad-Core |
|
Graphics |
Intel HD4600 GPU |
|
Memory |
8Gb |
|
Storage |
120Gb internal SSD |
|
Processing |
Video: 4:4:4:4, 32-bit Floating Point
Audio: 4
channels, 96 kHz, 32-bit Floating Point |
|
Standards |
HD-SDI video conforms to SMPTE 292M
SD-SDI video
conforms to SMPTE 259M |
|
Network |
Dual gigabit Ethernet NIC supporting Skype TX call
transmission, NDI transmission to and from supported
systems, Dante audio networking, and local network traffic |
|
Fail-Safe |
- Multi-tiered fail-safe system
- Automatic failover to audio
transmission with caller snapshot when bandwidth falls
below operator-defined preset value
- Comprehensive system restore
operation
|
|

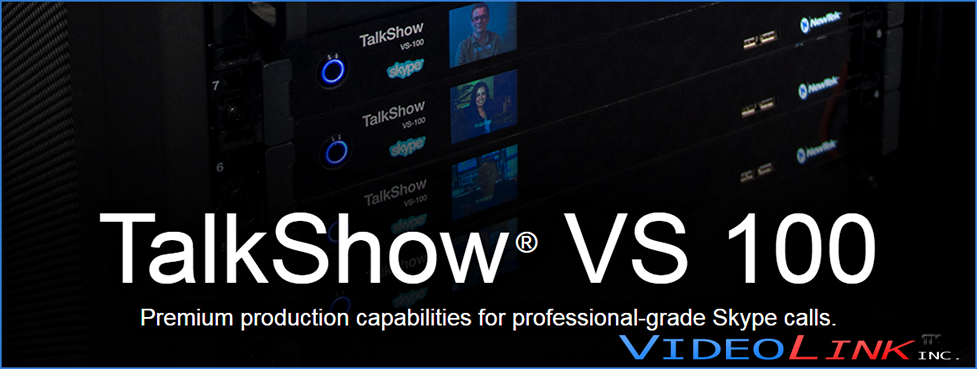

System Physical |
1RU Rack Mount with 180W power
supply (110-220V external; 12V internal)
- 19.0 x 1.75 x 16.75 in (48.3 x
4.5 x 42.5 cm) with rack ears attached
- 14 lbs (6.4 kg)
|
