Decimator DMON-4S
Advanced Video Broadcast Solutions
Videolink is the Canadian Distributor for Decimator Design. Decimator Design is an Australian based company that is dedicated to the design and manufacture of advanced video broadcast solutions.
310

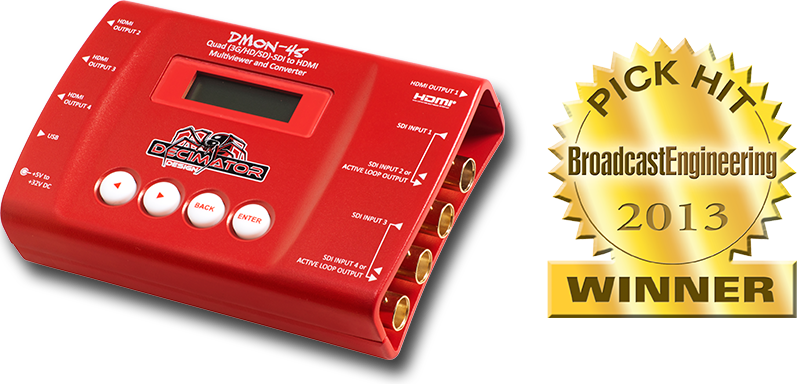

DMON-4S
4 x (3G/HD/SD)-SDI
to HDMI Converters with Multi-Viewing
• Includes 4 independent mini HDMI outputs
that can each output any of the four
(3G/HD/SD)-SDI inputs or a Quad-Split of all
them. For example you could use the unit
to have: - 4 independent SDI to HDMI
converters - 3 independent SDI to HDMI
converters with a quad-split output - 2
independent SDI to 2 x HDMI converters with
loop through - A single SDI or Quad-Splt
to 4 x HDMI outputs
• Inputs 2 and 4
can be individually changed to output active
loop copies of inputs 1 and 2
respectively.
• Quad-Split mode
allows selection of audio from any input.
• The DMON-4S is a truly portable
converter, that incorporates our new easy to
use LCD and button control system. This
gives you easy access to all of the amazing
features without using complicated
LED/button control, dip switches or having
to carry around a computer to change a simple
setting.
• This unit also includes:
- USB port for control and firmware updates
- Heavy duty metal box - Metal Thread
Locking DC Power Socket - Power Supply,
HDMI Cable and USB Cable
