Decimator MD-DUCC
Advanced Video Broadcast Solutions
Videolink is the Canadian Distributor for Decimator Design. Decimator Design is an Australian based company that is dedicated to the design and manufacture of advanced video broadcast solutions.
310

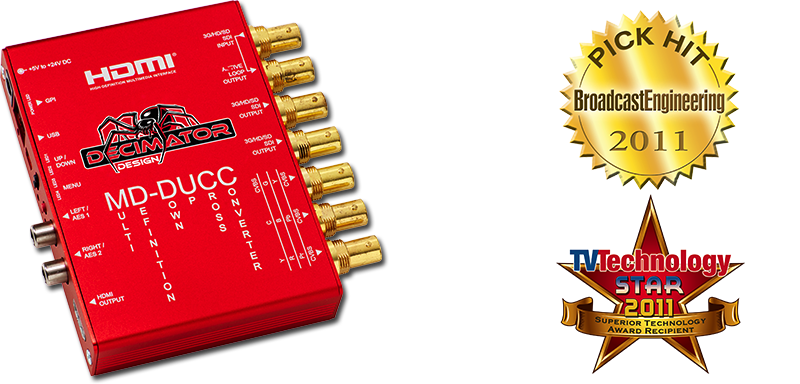

MD-DUCC
Multi-Definition
Down Up Cross Converter (3G/HD/SD)-SDI to
(3G/HD/SD)-SDI, HDMI and Analogue Video
with 2 x AES/EBU or 2 x Analogue Audio
Outputs
NEW FEATURES:
• The audio source for all 4 stereo pairs in
the HDMI output can be selected from the 8
stereo pairs available in the SDI input •
When scaling is enabled, the audio source
for all 8 stereo pairs in the SDI output can
be selected from the 8 stereo pairs
available in the SDI input
FEATURES:
• Auto detects 3G, HD or SD (26 Formats in
total) • Full 10-bit data path and
multipoint interpolation • Professional
motion-adaptive de-interlacing • True
Down Up Cross conversion, allowing the
conversion between any of the supported
formats. Simply select the output format you
require, no matter what the input format is
• Complete 16:9, 14:9 and 4:3 Aspect
ratio conversion support, with individual
selection for HD to HD, HD to SD, SD to HD
and SD to SD conversions • Full
16-Channel Audio metering with: - Any of
the 4 audio groups individually selectable
- Vertical or Horizontal Bars - AES, VU,
Extended VU, BBC, EBU, DIN and NORDIC Scales
- Bar & Float, Bar only or Float only -
Transparency adjustment - Separate Bar
and Float Ballistics control - Adjustable
Reference level - Red, Yellow and Green
Range adjustment - Bar thickness
adjustment - Margin adjustment •
Adjustable Graticules Generator with: -
Separate enables for Safe Action, Safe Title
and Centre Cross - Adjustable position
for either Safe Action or Safe Title -
Adjustable colours for Safe Action, Safe
Title and Centre Cross • Text Overlays
with: - Adjustable Foreground and
Background colours - Adjustable 16
character text - Current input format
status • HDMI output • Selectable
analogue video output from: - 3 x CVBS
out - YPbPr out - RGB out - CVBS &
YC out • 2 x (3G/HD/SD)-SDI 10-bit
outputs with audio from input automatically
delayed and passed • GPI on RJ-45 for
Tallies • 3G/HD/SD-SDI Active
Loop-Through Output • De-Embedded audio
can be output on 2 x RCA connectors as
either AES or Analogue with adjustable
analogue audio level • LEDs for status
and buttons for basic configuration •
USB port for control and firmware updates
• Locking DC Power Socket • The
following is also included with the unit:
- Power Supply, HDMI Cable, USB Cable and
Mounting Bracket
