vMix 1U - Videolink Live Video Production Systems

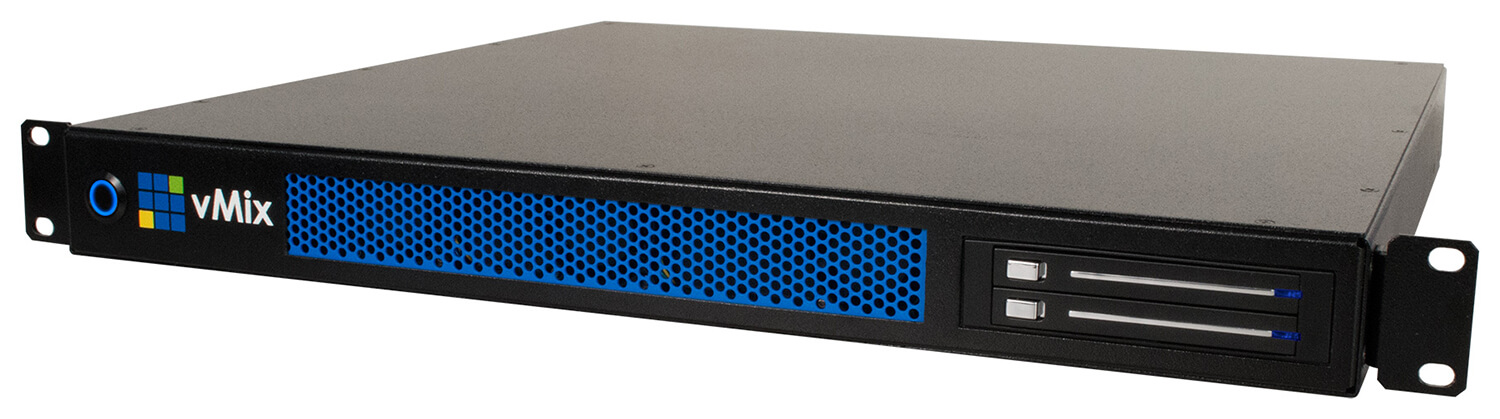

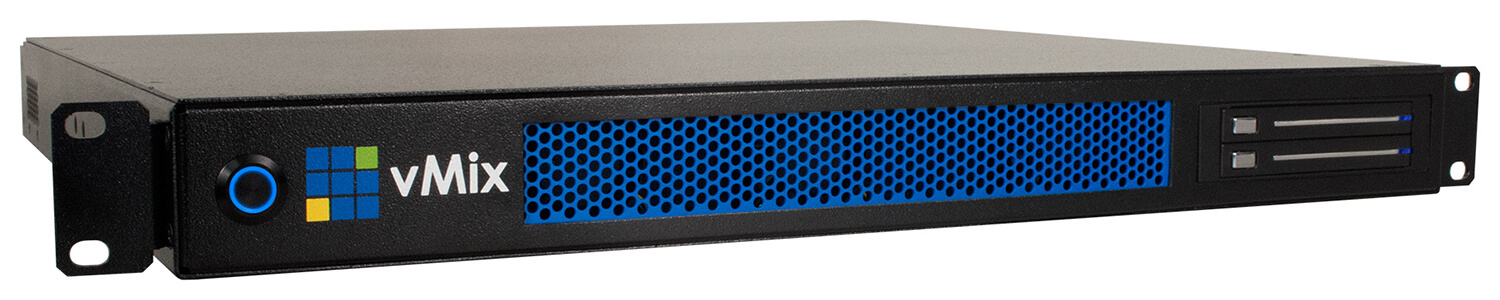

vMix 1U is a complete live production system packed into a compact 1U rackmount unit.

Powered by the versatile vMix live production software, not only can this unit be used to power your entire live production with 4 camera switching, streaming and recording, it is also just as versatile as a companion to any existing live production setup. This means you can use the vMix U as a multi bitrate HD streaming encoder, video recorder, dedicated graphics titler, video playout server or to take advantage of the any number of features available in vMix and plug it into to your existing workflow using SDI or NDI connectivity.

OVERVIEW

CONNECTION DIAGRAM

TECH SPECS

INTERFACE

Powerful Storage Capabilities
The vMix U includes 500GB of built in super fast SSD storage and two hot swap SSD drive bays in the front, allowing you to add additional storage to your productions quickly and easily.

The drive bays support most 2.5" SSD drives and can be used as additional space for recordings or to load media assets that can be used instantly right from within vMix.

Click on the Pictures for Large Views

$6995.00 US - Contact Us - 1-800-567-8481

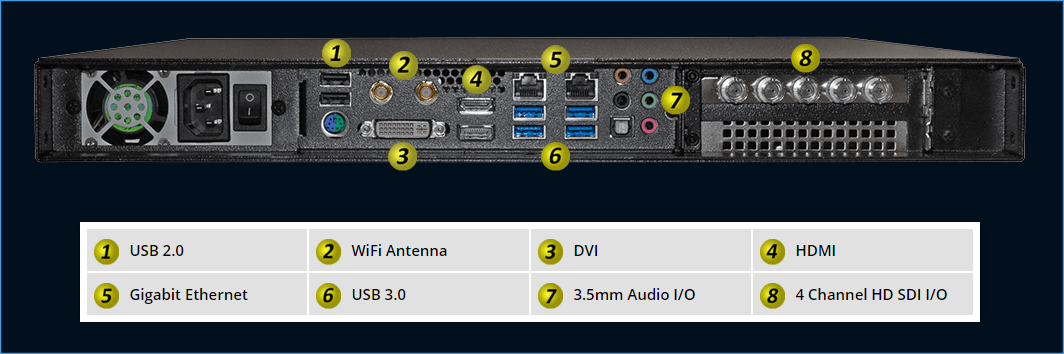

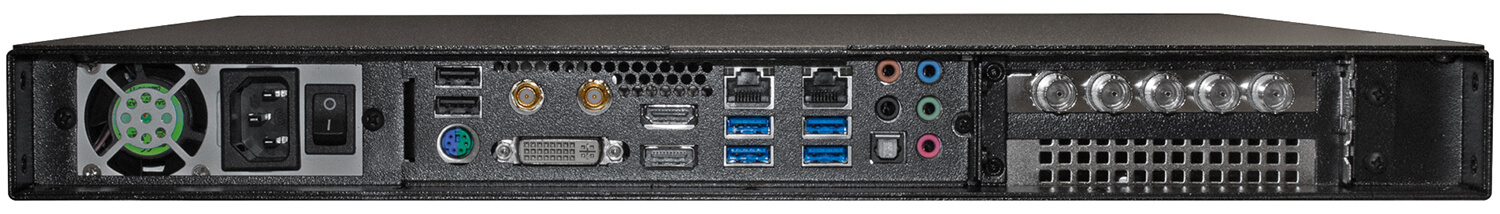

vMix 1U Connection Diagram

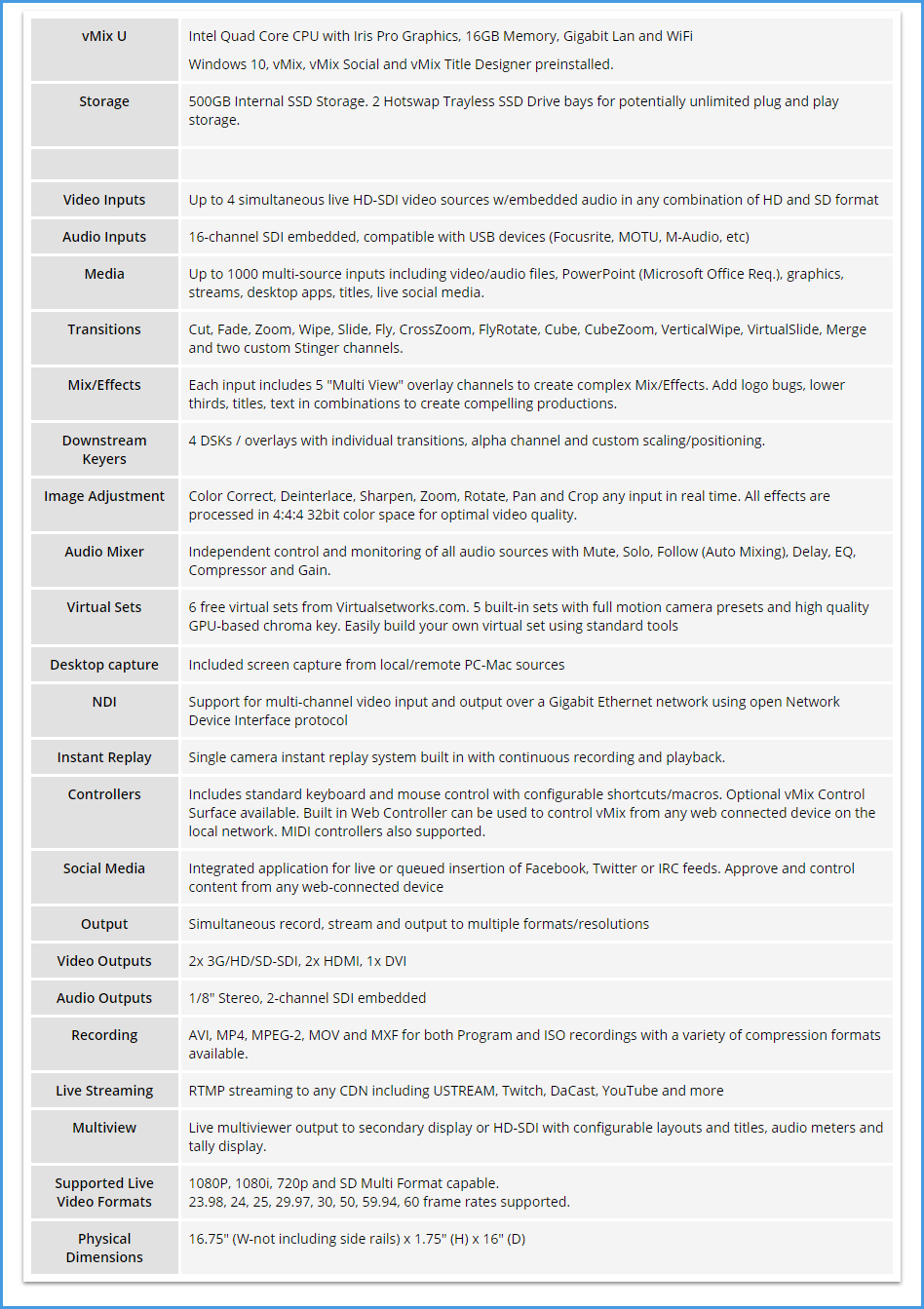

VMix 1U Technical Specifications

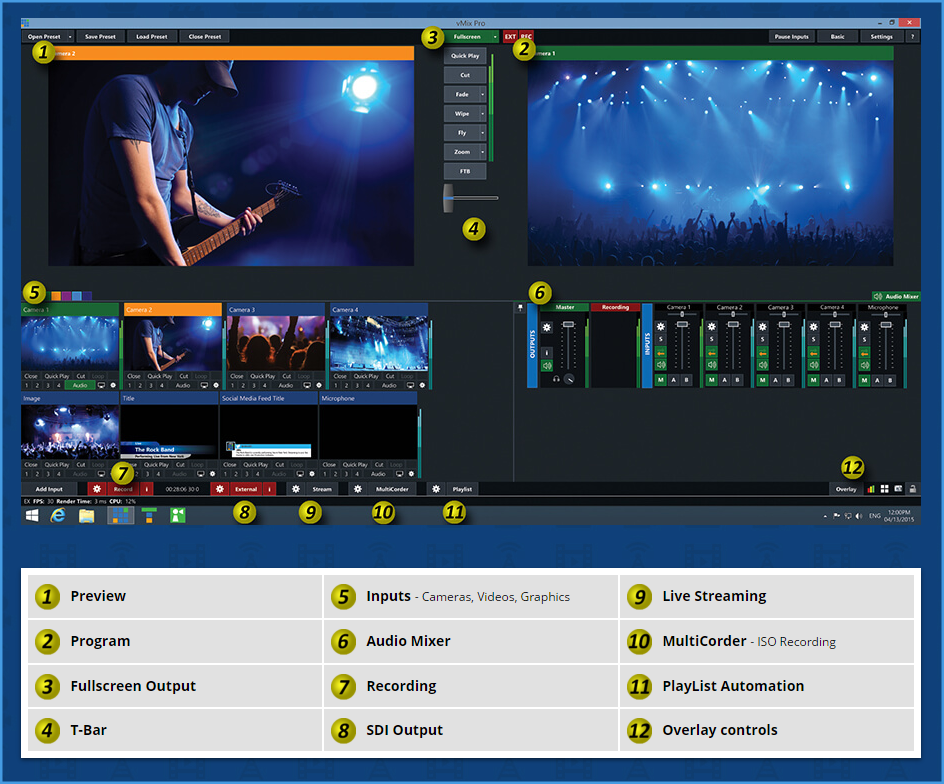

vMix 1U Interface

$6995.00 US - Contact Us - 1-800-567-8481

To learn more or purchase vMix products contact:
VideoLink Canada
Toronto (416) 690-1690
Toll Free 1-800-567-8481
info@videolink.ca

Toronto | Montreal | Winnipeg | Edmonton

vMix 1URackmount - 4 HD SDI I/O - 2 Hotswap SSD Bays- Streaming - Recording - Video - Graphics - Virtual Sets - Chroma Key and more! Get the tools you need from Videolink!

vMix 1U
Rackmount - 4 HD SDI I/O - 2 Hotswap SSD Bays
- Streaming - Recording - Video - Graphics - Virtual Sets - Chroma Key and more!
Get the tools you need from Videolink!
