Decimator MD-QUAD
Advanced Video Broadcast Solutions

Decimator Design  Videolink is the Canadian Distributor for Decimator Design. Decimator Design is an Australian based company that is dedicated to the design and manufacture of advanced video broadcast solutions.
310

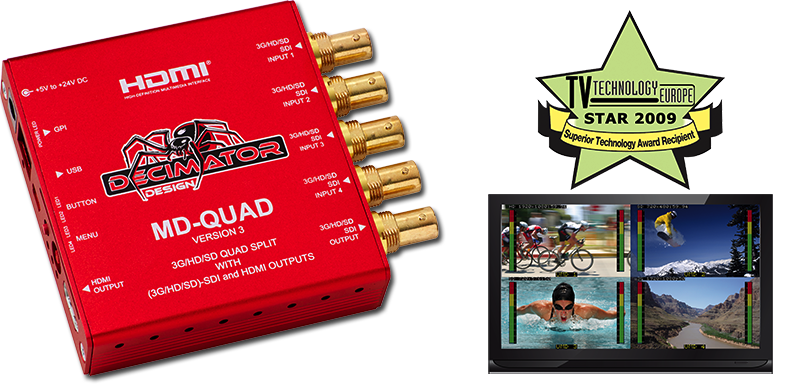

MD-QUAD

MINIATURE (3G/HD/SD)-SDI MULTIVIEWER / QUAD-SPLIT
with (3G/HD/SDI)-SDI and HDMI Outputs

$1295.00 US - Contact Us -1-800-567-8481


NEW FEATURES:
(Excluding units with serials starting with MQS)
• Professional 3G/HD/SD Test Pattern Generator featuring:
- 26 Selectable Output Formats
- 54 Test Patterns including Luma and Chroma Zone-plates
• Audio Tone Generator
• In Quad-Split mode the first 8-channels of audio from any input can now be passed to both the HDMI and SDI output
• On-screen audio id pop-up when selection audio source in Quad-Split mode
• On-screen display pop-up when using the rotary to allow for use when without a PC

FEATURES:
• Low cost miniature (3G/HD/SD)-SDI 4 to 1 Quad Split or 4 to 1 input multiplexer
• Selectable output format in Quad-Split mode
• Dynamic UMD and Tally support via RS422/485 pins on RJ45 connector
• GPI on RJ-45 for remote switching and Tallies
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• 8-Channel Audio metering for each quadrant with:
- The first two audio groups individually selectable
- Vertical or Horizontal Bars
- AES/EBU, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
- Bar & Float, Bar only or Float only (Float is not available for MQS serials)
- Transparency adjustment
- Separate Bar and Float Ballistics control
- Adjustable Reference level
- Red, Yellow and Green Range adjustment
- Bar thickness adjustment
- Margin adjustment
• Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per quadrant
• All 4 inputs can be displayed simultaneously on a single output
• Pass-Through mode allowing any of the 4 inputs to be selected for output
• In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
• On-Screen 16 character IDs (UMDs) for each input
• An extensive selection of user controllable functions via a easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control
• USB port for control and updates
• Locking DC Power Socket
• The following is included with the unit: Power Supply, HDMI Cable, USB Cable and Mounting Bracket



MD-QUAD VERSION 3
HARDWARE (MQC Serial)

MD-QUAD VERSION 2 HARDWARE
(MQA and MQB Serial)

MD-QUAD VERSION 1
HARDWARE



$1295.00 US - Contact Us -1-800-567-8481
