Decimator MC-DMON-9S
Advanced Video Broadcast Solutions

Decimator Design  Videolink is the Canadian Distributor for Decimator Design. Decimator Design is an Australian based company that is dedicated to the design and manufacture of advanced video broadcast solutions.
310

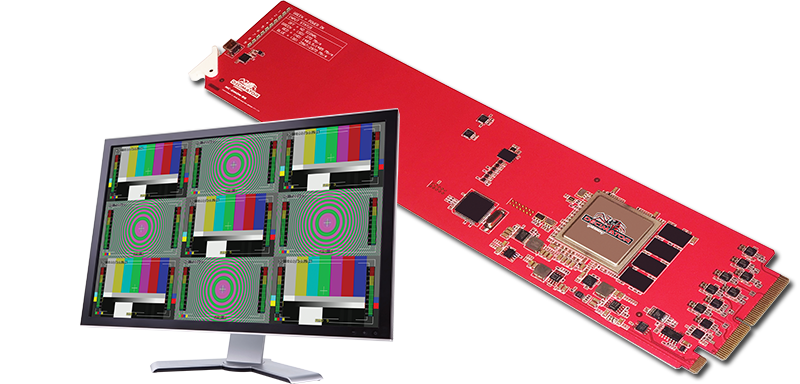

MC-DMON-9S

1 to 9 Channel (3G/HD/SD)-SDI MultiViewer
with Custom Layouts

$995.00 US - Contact Us -1-800-567-8481


• Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.

• Low cost miniature (3G/HD/SD)-SDI 1 to 9 channel MultiViewer or 9 to 1 input multiplexer

• Custom Layouts with various standard layouts

• Fast switching between inputs using Full-Screen scaling

• Use 10 cards in a frame to create an 81 (9 x 9) channel MultiViewer

• 16 Character UMD overlay per window with individual enables, custom positioning and size

• 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size

• Format Status overlay per window with individual enables, custom positioning and size

• Safe Action and Safe Title overlay per window with individual enables and adjustment

• Centre Cross overlay per window with individual enable

• Audio ID overlay

• Load and restore Custom Layouts

• Fast switching between inputs using Full-Screen scaling

• Selectable output format in both Full-Screen and Multi-Viewer mode

• Low latency buffering for each input allowing non-synchronous inputs

• 9 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)

• 1 x (3G/HD/SD)-SDI output

• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

• Variable aspect ratios per window

• Pass-Through mode allowing any of the 9 inputs to be selected and routed to the (3G/HD/SD)-SDI output

• USB port for:
1. Control
2. Firmware updates
3. Custom MultiView layout creation
4. Saving and loading settings
5. Saving and loading custom layouts
• openGear DashBoard for control

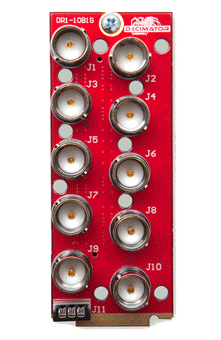

MC-DMON-9S - Rear Panel MC-DMON-9S Rear Module

Featuring 10x BNC SDI connectors & 1 Serial Port
Note: this item is not a requirement but allows control of Dynamic UMDs & Tallies via the Serial Port.











$995.00 US - Contact Us -1-800-567-8481
