Decimator DMON-16SL
Advanced Video Broadcast Solutions

Decimator Design  Videolink is the Canadian Distributor for Decimator Design. Decimator Design is an Australian based company that is dedicated to the design and manufacture of advanced video broadcast solutions.
310

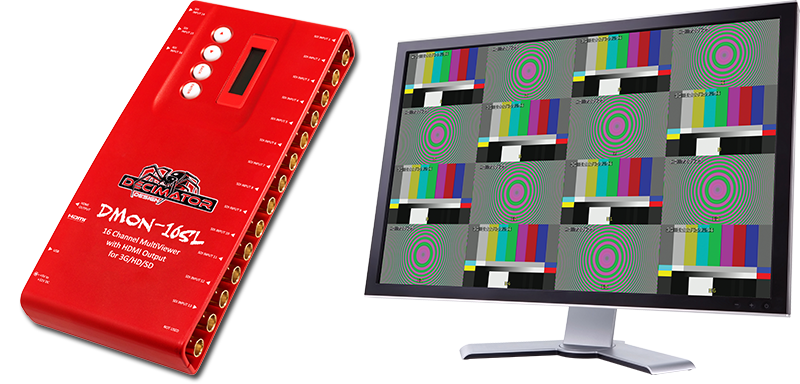

DMON-16SL

1 to 16 Channel MultiViewer with SDI and HDMI outputs for 3G/HD/SD and Custom Layouts

$795.00 US - Order Online or Contact Us -1-800-567-8481



• Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer or
16 to 1 input multiplexer

• Custom Layouts with various standard layouts

• 16 Character UMD overlay per window with individual enables,
custom positioning and size

• 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size

• Safe Action and Safe Title overlay per window with individual enables and adjustment

• Centre Cross overlay per window with individual enable

• Audio ID overlay

• Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border

• Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)

• Load and restore Custom Layouts

• Fast switching between inputs using Full-Screen scaling

• Selectable output format in both Full-Screen and Multi-Viewer mode

• Low latency buffering for each input allowing non-synchronous inputs

• Linked (3G/HD/SD)-SDI and HDMI outputs

• 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)

• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

• Variable aspect ratios per window

• Pass-Through mode allowing any of the 16 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs

• The DMON-16S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without
using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

• This unit also includes:
- 32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching
- RS422/485 on 37-pin D-SUB connector for Dynamic UMD and Tallies via TSL protocol
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable






$795.00 US - Order Online or Contact Us -1-800-567-8481
